Cubicle Type High Voltage Switchgear Stationary Metal Enclosed Structure

Introduction

　XGN2-12 cubicle-type stationary metal-enclosed switchgear applies to 3.6-12kV/50Hz, rated current 630-3150A 3-phase AC, is used for power receiving and distribution in single busbar, single busbar with bypass or dual-busbar system, and is installed in indoor location. It can meet usage requirements of various types of power plants, transformer substation (plant) and industrial and mining enterprises.

Features

　This switch cabinet is of metal-enclosed structure, degree of protection is IP4X, main switch cabinet adopts ZN28A-10 series of vacuum circuit breaker, and is configured with CD10/CD17A series of electromagnetic operating mechanism or CT19B series of spring operating mechanism, disconnecting switch adopts GN30-12 series of rotary disconnecting switch, and GN22-10 large current disconnecting switch series of product. Interlock mechanism between main switch, disconnecting switch, earthing switch and cabinet door adopts compulsory mechanical locking mode, is in compliance with “five-proof”function, and features characteristics such as reasonable structure, safety and reliability, convenient operation and convenient maintenance, etc.

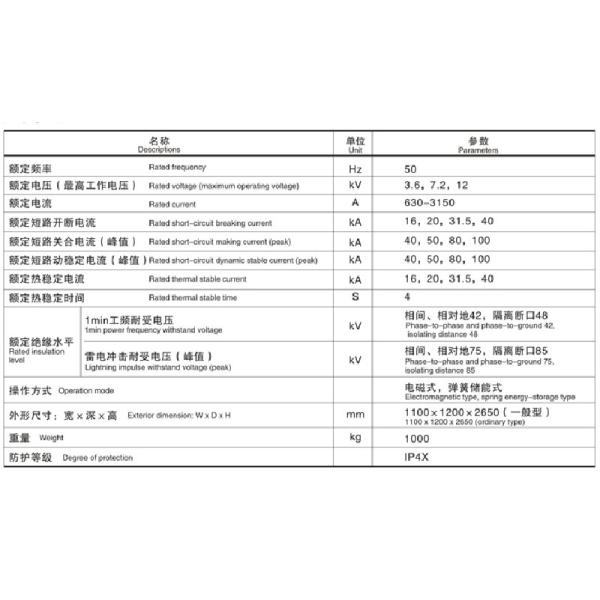

technical data

switchgear control panel

metal clad switchgear

Cubicle Type High Voltage Switchgear Stationary Metal Enclosed Structure Images
